Electrical Safe Products
Specialists in Explosionproof Electrical & Instrumentation Equipment
Intrinsically-safe Products
Intrinsically-safe (Ex i) circuits are used to transfer low energy signals to/from the hazardous area. We are proud to to be the UK partner for A Puissance 3 (AP3), enabling us to offer a wide range of intrinsically-safe products - a selection of which are featured below.
Range of Intrinsically-safe Interfaces
- ATEX-certified Ex ia for gases and dusts, including Zone 0 and Zone 20 areas
- Available with a wide range of functions for all applications
- Pulse-isolator function
- Analogue signal transmitters
- Alarm and solenoid drivers
- Thermistor relays

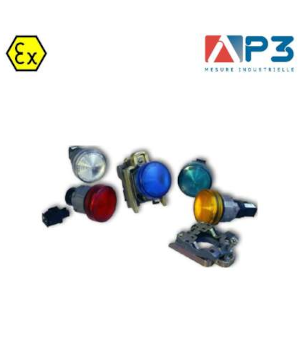

Intrinsically-safe LEDs
- ATEX-certified Ex ia for gases and dusts, including Zone 0 and Zone 20 areas
- Availabe in red, green, yellow, blue and white
- Utilises standard 22mm diameter cut-out
- Features removable screw terminal block
- We have a compatible 2-channel or 4-channel instrinically-safe LED driver module available

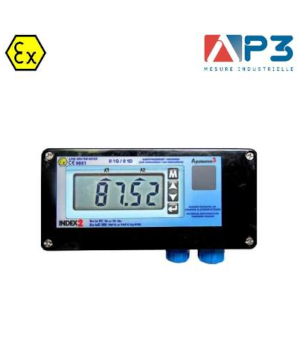

Intrinsically-safe Displays
- ATEX-certified Ex ia for gases and dusts, including Zone 0 and Zone 20 areas
- 18mm high backlit LED display
- Direct connection of PT100-1000 or Ni100-1000, resistance or potentiometer input
- Two alarm thresholds with adjustable hysteresis
- Programmable 4-20mA NAMUR output
- Optionally available installed in IP65 GRP enclosure
Intrinsically-safe Earthing
- ATEX-certified Ex ia for gases and dusts, including Zone 0 and Zone 20 areas
- Secures the earthing in a hazardous area and eliminates static discharge from mobile containers
- Ease of use
- Earth continuity light

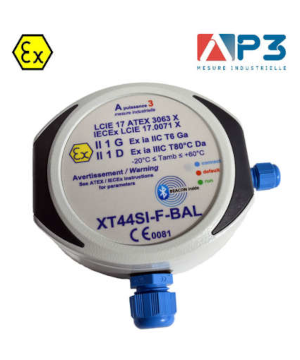

Intrinsically-safe Transmitters
- ATEX-certified Ex ia for gases and dusts, including Zone 0 and Zone 20 areas
- Temperature, frequency and flow metering products available
- Configurable via smatphone using BlueTooth on some products
- IP65 aluminium or polyester body
- We have a compatible analogue instrinically-safe inerface modules available
